4 Tons 180 Degree Rotator Roll Back Truck Bed With Sliding Winch Rotating Ramp

Place of Origin : Hubei, China

Price : $19,500.00/units

Supply Ability : 5 units / month

Delivery Time : 30 days

Packaging Details : Nude, covered with film protection

Product name : Rotator Carrier / Rotator Tilt Tray

Dimensions (L x W x H) (mm) : 6 m

Material : Q235B, Q345R, etc.

Thickness : 4 mm

Winch : 4 tons

Underlift : 4 tons

Ram lift : 4 tons

Wireless remote control : Equipped

Hydraulic system : Equipped

Sliding Winch : Optional

Warranty : 1 Year

Contact Now

4 TONS FLATBED WRECKER TRUCK BODY ROLLBACK WRECKER PLATFORM

Product Description

The rotator rallback / slide and tilt truck bed / wrecker bed is available in steel, with multiple deck length and width configurations. The bed is 180 degree rotation for different situation.

Main Features

1. Bed Length about 5.6 m. Capacity 4 Tons.

2. 180 degree deck rotation. Supporting legs

3. Optional slide winch.

4. Optional Material from Q235B, Q345, etc.

Spec

4 Tons Rotator Tilt Tray
General Settings	Color	Customizable, electrophoresis painting is optional
	Winch Capacity	4 tons
	Lift Capacity	4 tons
	Extension Capacity	4 tons
	Underlift Capacity	4 tons
	Platform Material	Q235B, 4mm thick
	Platform Type	180 degree rotator
	Platform Dimension	5600 x 2300 mm (customizable)
	Wireless Remote Control	Optional
	Subframe with Underlift	Match to chassis
Lights	Siren Long Lamp with Speaker	1 pcs
	Sides Lights	8 pcs
	Frame Lights with Lights Seat	6 pcs
Hydraulic System	Bed Extension Cylinder with Seat	1 pcs
	Bed Lift Cylinder with Seat	2 pcs
	Underlift lift Cylinder	2 pcs
	Underlift Extension Cylinder	1 pcs
	Hydraulic Winch	1 pcs
	Hydraulic Pump	1 pcs
	Hydraulic Multi Way Valve	1 pcs
	Hydraulic Balance Valve	2 pcs (1 for lift and 1 for underlift)
	Hydraulic Hose	1 set
	Hydraulic Hose Containment	1 set
	Hose Sleeve	1 pcs
	Manual Control with Stainless Steel Seat	2 sets (on both sides)
	Oil Tank	1 pcs
Accessories	Auxiliary Wheels	2 pcs
	Straps	4 pcs
	Toolbox	2 pcs
	Wheel Grids	2 pcs
	L arms	2 pcs
	Fence	2 pcs
	Mudflap	2 pcs
	Lamp Frame	1 pcs
	Tow Chain	1 pcs
	Frame and Lights Bolts	1 set
	Toolbox and Fence Brackets Square Tube	1 set

4 Tons 180 Degree Rotator Roll Back Truck Bed With Sliding Winch Rotating Ramp

Product Tags:

4 Tons Roll Back Truck Bed

180 Degree Rotator roll back flatbed

rollback flatbeds 4 Tons

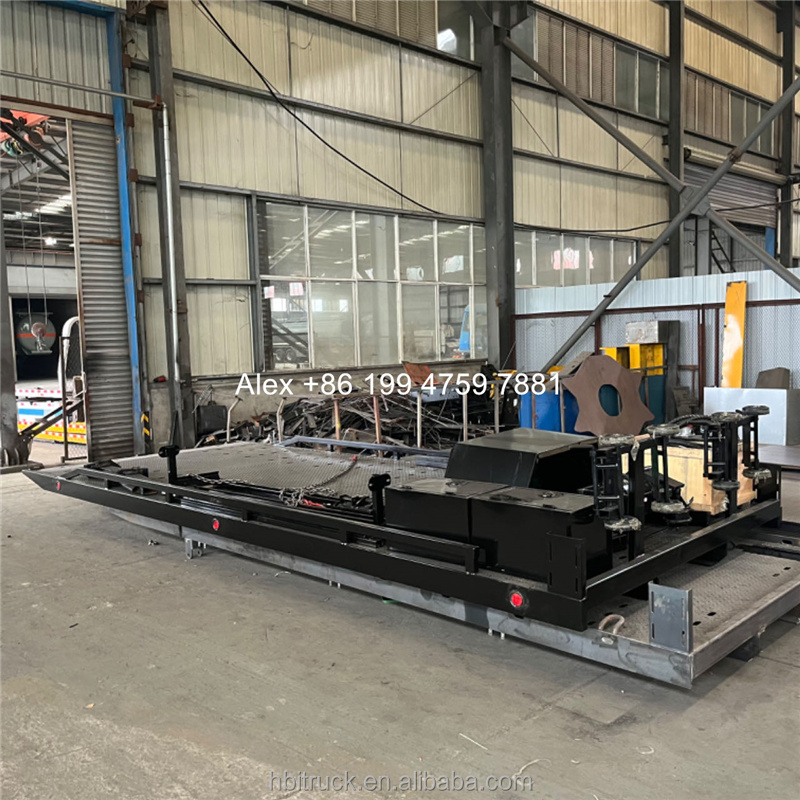

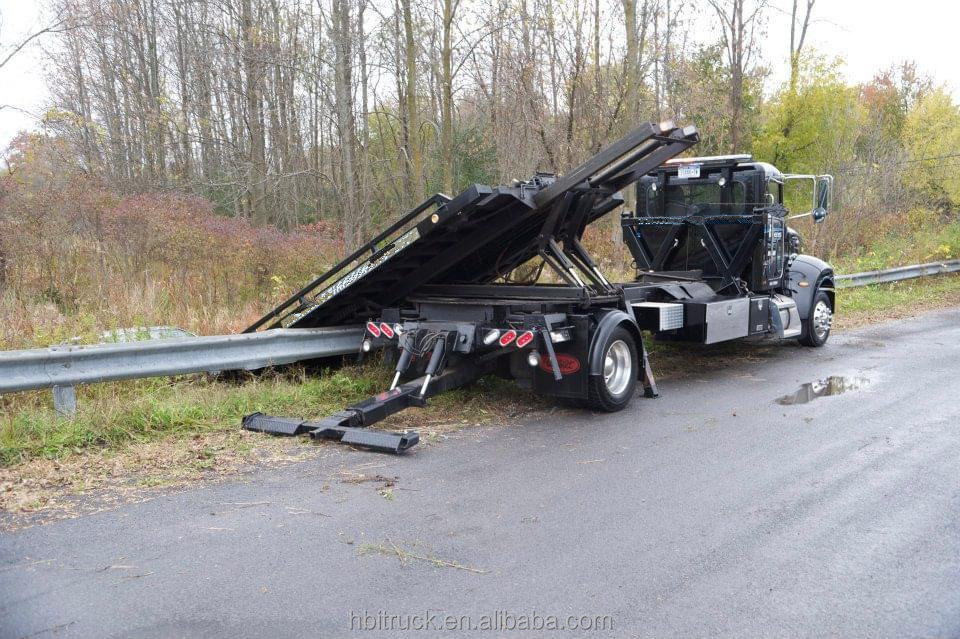

4 Tons 180 Degree Rotator Roll Back Truck Bed With Sliding Winch Rotating Ramp Images
